Clever Flow Series with Plastic Housing
Microlit Clever Flow Peristaltic Pumps (MP110C, MP310C, MP610C) with ABS Engineering Plastic Housing
- 4.3″ color LCD with wide viewing angle for clear display
- Touchscreen and keypad combo for intuitive operation
- Start/stop, reverse, full speed, back suction, and memory functions
- Direct input for flow or speed for quick setup
- Wizard-style calibration for easy and accurate flow setting
- Intelligent temperature control for optimized performance
- WiFi app control with shutdown alarm and tube reminders
- External analog and signal support for flexible control
- Physically isolated external controls for added safety
- RS485 with MODBUS and up to 80 command support
The Clever Flow peristaltic pumps, built with robust ABS engineering plastic housing, ensure precise liquid metering and high-accuracy flow control. The upgraded large true-color LCD touchscreen enhances user interaction with a clearer and more intuitive display. Advanced programmable modes accommodate complex experimental needs, while RS485 communication enables smooth integration with diverse control systems.
For Model: MP110C
Flow Rate: 0.00011-750 ml/min, Speed Rate: 0.1~150 RPM
Driver Weight: 3.6 kg, Power Consumption: <30W
For Model: MP310C
Flow Rate: 0.005-1750 ml/min, Speed Rate: 0.1~350 RPM
Driver Weight: 3.9kg, Power Consumption: <40W
For Model: MP610C
Flow Rate: 0.005- 3000 ml/min, Speed Rate: 0.1~600 RPM
Driver Weight: 3.9kg, Power Consumption: <50W

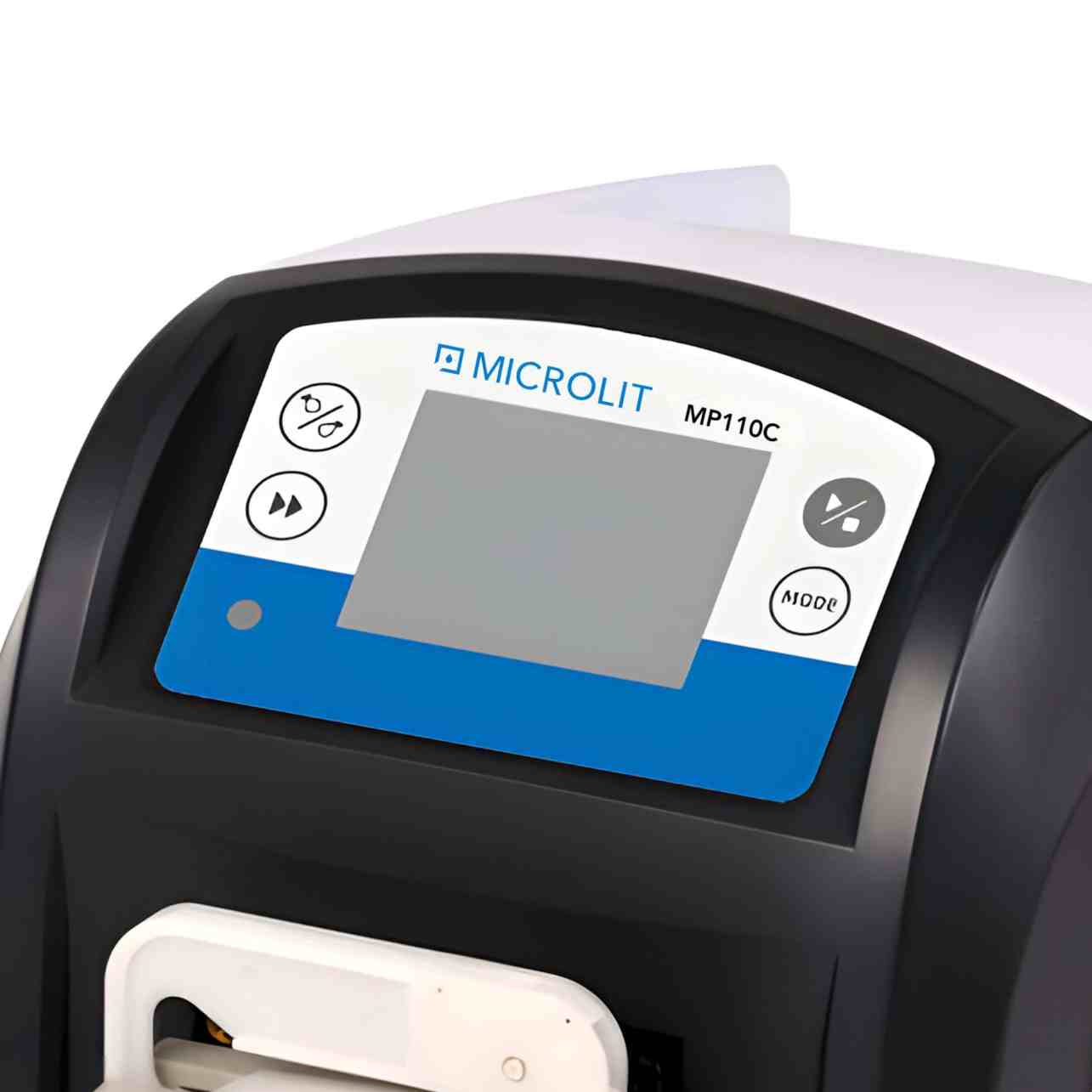

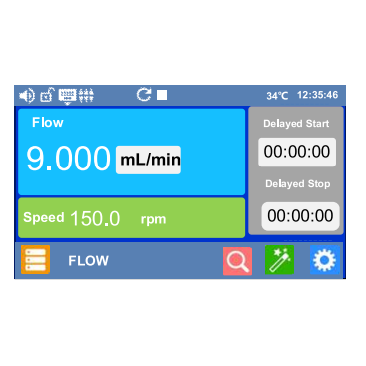

4.3-inch Color LCD Display
4.3-inch color LCD screen offers wide viewing angles and sharp, clear visuals for enhanced display quality in any lighting.
Comprehensive Control Functions
Includes essential functions such as start/stop, reversible flow, full-speed operation, back suction, and memory recall, with direct flow or speed input.
Effortless Calibration with Wizard-Style Flow Setup
Wizard-style flow calibration ensures quick, easy, and highly accurate setup for optimal performance.

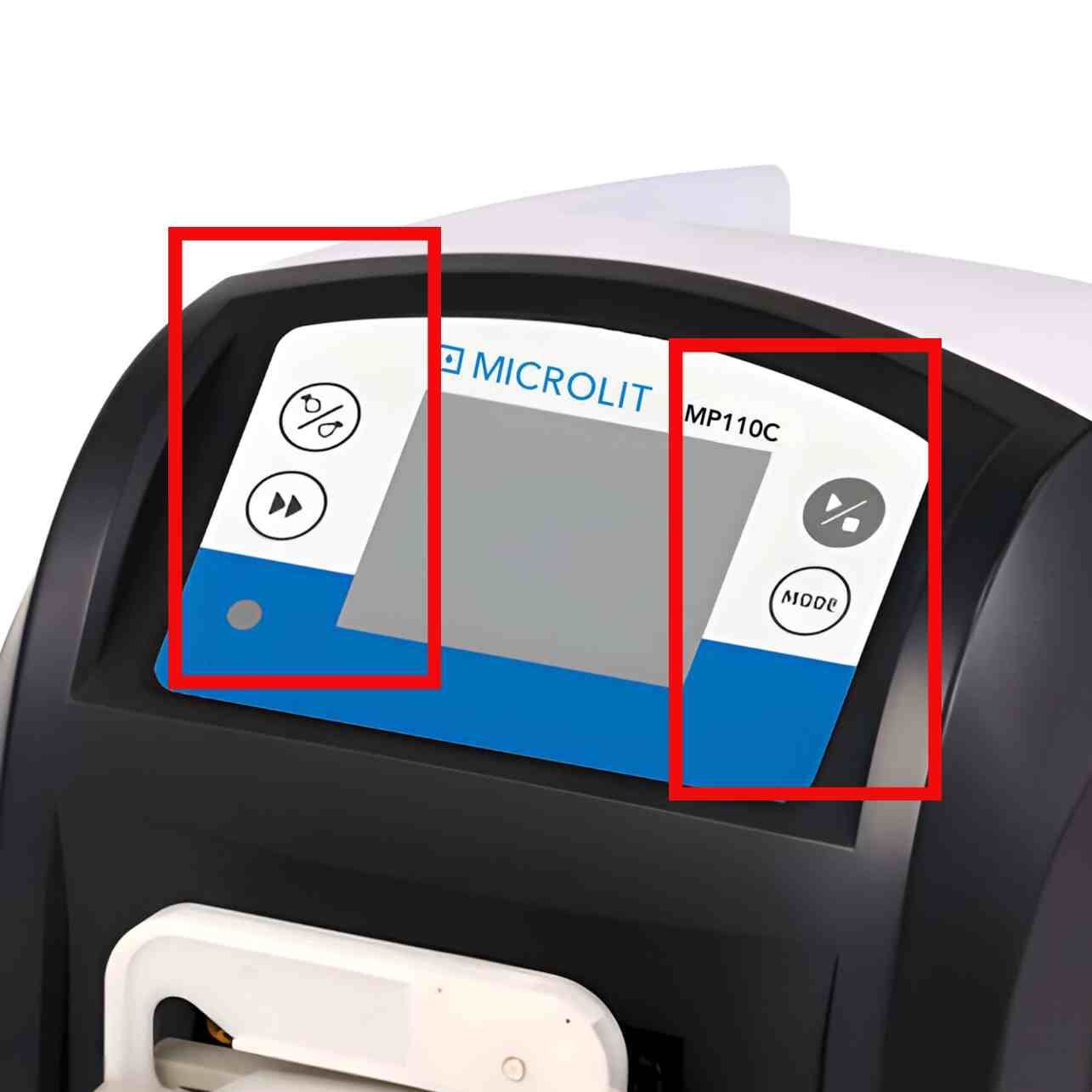

Intuitive Control with Touchscreen and Keypad Operation
Touchscreen and keypad operation together deliver a seamless, user-friendly experience, allowing for quick navigation, easy adjustments, and precise control of settings.
RS485 Communication with MODBUS Protocol
Enabling seamless integration with control systems and up to 80 programmable instructions for enhanced automation.

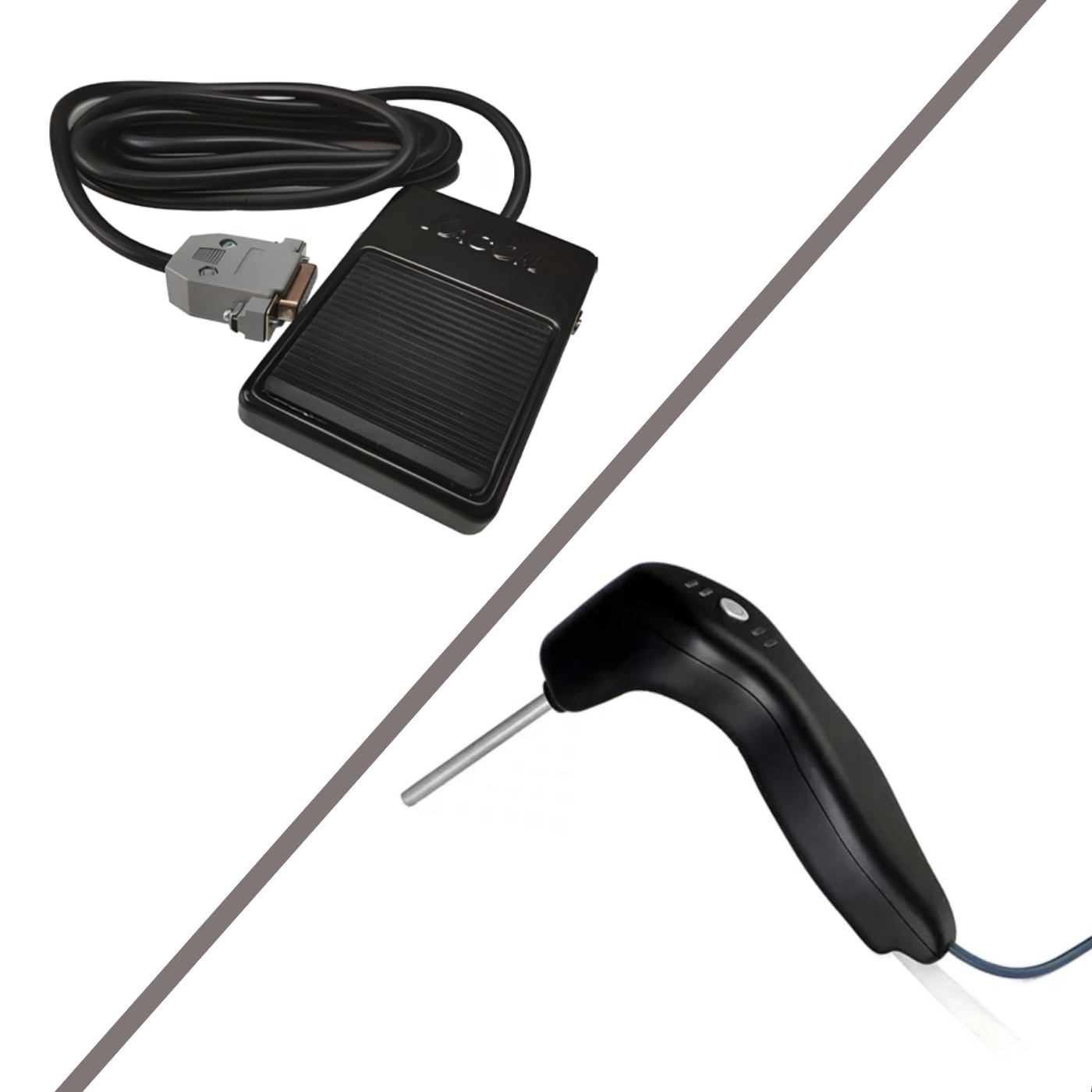

Accessories for Comfortable Control
Comes with optional accessories, such as a Foot Switch and Hand Dispenser, for convenient and comfortable dispensing control.
| Features | Description |
|---|---|
| Speed Resolution | 0.1RPM |
| Speed Accuracy | <±0.2% |
| Power Supply | AC 100~240V, 50Hz/60Hz |
| Power Consumption | <30W |
| External Control Interface | External control input level 5V, 12V (standard), 24V (optional), External control analog 0-5V (standard), 0-10V, 4-20mA (optional) |
| Communication Interface | RS485 communication interface, MODBUS protocol is available |
| Working Environment | Temperature 0 ~ 40°C, relative humidity<80% |
| IP Grade | IP31 |
| Dimension (L×W×H) | 258mm×180mm×197mm |
Explore the Microlit Clever Flow Peristaltic Pump catalogues and manuals for comprehensive technical specifications, installation instructions, and operating guidelines. These resources provide detailed insights into model features, tubing compatibility, flow range, and maintenance, making them valuable for both new and experienced users.
| Accessories | Description |
 |
Hand Dispenser MP-HD
The hand dispenser, equipped with Microlit MP-HD series filling needles, is well-suited for manual and semi-automatic dispensing using a peristaltic pump. It offers a comfortable grip, compact form, and lightweight design. |
 |
Footswitch MP-FS
Compatible with Microlit’s complete product range, the footswitch controls pump start and stop functions. It features a light-touch front-step design for responsive feedback and fatigue-free operation. |
 |
Pump Head PH15-24 | PH15-44 | PH 10-28
The PH series pump head is designed for small to medium flow and multi-channel fluid transfer, available in two variants—PH10 and PH15—based on tubing size. It supports a single-channel flow range of 0.00023 to 64 ml/min and is compatible with tubing sizes 13# and 14#, featuring inner diameters from 0.13 to 3.2 mm and wall thicknesses between 0.8 and 1 mm. |
 |
Pump Head PH 6-4
The Microlit PH series pump head is engineered for low-flow, multi-channel fluid transfer, capable of handling 1 to 48 channels within a compact and user-friendly design. Its precisely engineered structure ensures ultra-low pulsation, outperforming conventional multi-roller pump heads. |
 |
Pump Head PH 15T
The PH15T pump head incorporates a rear cover design to enhance product integrity, featuring a sleek, elegant appearance with dynamic curved lines. An independent small faceplate has been added to the rear cover for a more standardized look. It includes an adjustable pressure tube gap, easily modified by turning the screws on top, allowing compatibility with various tube specifications. This improves pressure control, increases versatility, and extends tube lifespan |
 |
Pump Head PH-25
The PH25 pump head provides a flow range of 0.024 to 3000 ml/min and supports tube sizes 114#, 116#, 15#, 24#, 35#, and 36#. It is well-suited for handling more viscous fluids and accommodates higher suction capacities, head pressure, and outlet pressure requirements. |
