Speed Variable Series with Plastic Housing

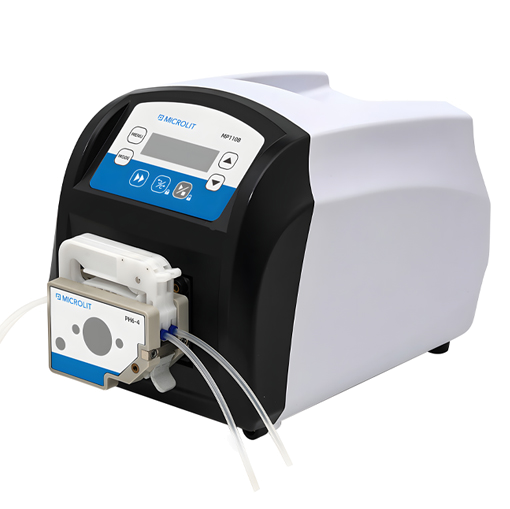

Microlit Speed Variable Peristaltic Pumps (MP110B, MP310B, MP610B) with ABS Engineering Plastic Housing
- LCD Display for parameter setting and status indication.
- Programmable delay start/stop functionality.
- Supports bidirectional control, variable speed, and non-volatile memory.
- External analog input and opto-isolated control signals.
- RS485 communication with MODBUS protocol support.
- ABS engineering plastic housing with ergonomic design.
- Time-based and volume-defined dispensing cycles.
- Optimized cost-to-performance ratio for standard flow applications.
Microlit Speed Variable Peristaltic Pumps offer essential functions such as start/stop control, speed adjustment, and forward/reverse rotation. They feature an LCD display, multi-segment dispensing, and an anti-drip mechanism, along with RS485 communication via the MODBUS protocol for smooth integration with other equipment or devices.
Driver Weight: 3.6kg, Power Consumption: <30W
Flow Rate: 0.005-1750 ml/min, Speed Rate: 0.1~350RPM
Driver Weight: 3.9kg, Power Consumption: <40W
Flow Rate: 0.005-3000 ml/min, Speed Rate: 0.1~600RPM
Driver Weight: 3.9kg, Power Consumption: <50W
User-Friendly LCD Display
Equipped with a clear LCD display that allows for simple parameter settings and intuitive status monitoring.
Delay Start and Stop Functionality
Includes programmable delay start and delay stop features to enhance operational flexibility.
RS485 Communication with MODBUS Support
Features a built-in RS485 interface supporting MODBUS protocol, enabling seamless integration with various external systems and customizable communication parameters.
Comprehensive Control Options
Offers versatile control features including start/stop, reversible direction, full-speed operation, adjustable speed, and state memory (power-down memory) to resume previous settings after power loss.
Durable and Aesthetic Housing
Constructed with high-quality ABS engineering plastic, the unit features a creative, streamlined design that is both durable and visually appealing
Various Head Pump Support
Compatible with multiple pump head types, enabling flexible configuration to suit different flow rates and application needs. Ideal for a wide range of liquid handling tasks.
| Features | Description |
|---|---|
| Speed Resolution | 0.1RPM (speed > 100 RPM ) / 1RPM (speed>100RPM) |
| Speed Accuracy | 0.5% |
| Power Supply | AC 100~240V, 50Hz/60Hz |
| Duration | 0.1~999 S/Min/H/D |
| Dispensing Interval Time | 0.1~999 S/Min/H/D |
| Dispensing Time | 1~999, “0” Infinite loops |
| External Control | External control input level 5V, 12V (Standard), 24V (Optional), External control analog 0-5V (Standard), 0-10V, 4-20mA (Optional) |
| Working Environment | Temperature 0~40°C, relative humidity❮80% |
| IP Grade | IP31 |
| Dimension (L×W×H) | 284mm × 180mm × 197mm |
Explore Microlit Speed Variable Peristaltic Pump catalogues and manuals to access detailed technical specifications, installation guides, and operational instructions. These resources offer comprehensive information on model features, tubing compatibility, flow ranges, and maintenance tips. Ideal for both first-time users and experienced professionals.
| Accessories | Description |
 |

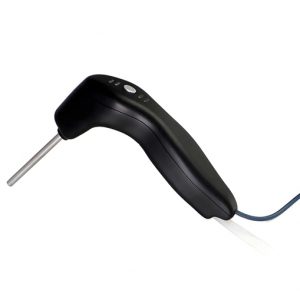

Hand Dispenser MP-HD
The hand dispenser, equipped with Microlit MP-HD series filling needles, is well-suited for manual and semi-automatic dispensing using a peristaltic pump. It offers a comfortable grip, compact form, and lightweight design. |
 |

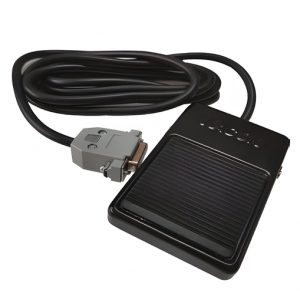

Footswitch MP-FS
Compatible with Microlit’s complete product range, the footswitch controls pump start and stop functions. It features a light-touch front-step design for responsive feedback and fatigue-free operation. |
 |

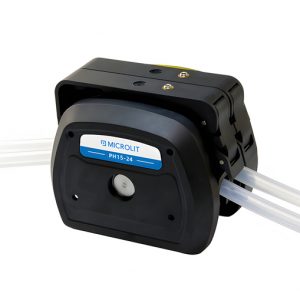

Pump Head PH15-24 | PH15-44 | PH 10-28
The PH series pump head is designed for small to medium flow and multi-channel fluid transfer, available in two variants—PH10 and PH15—based on tubing size. It supports a single-channel flow range of 0.00023 to 64 ml/min and is compatible with tubing sizes 13# and 14#, featuring inner diameters from 0.13 to 3.2 mm and wall thicknesses between 0.8 and 1 mm. |
|
Pump Head PH 6-4
The Microlit PH series pump head is engineered for low-flow, multi-channel fluid transfer, capable of handling 1 to 48 channels within a compact and user-friendly design. Its precisely engineered structure ensures ultra-low pulsation, outperforming conventional multi-roller pump heads. |
 |

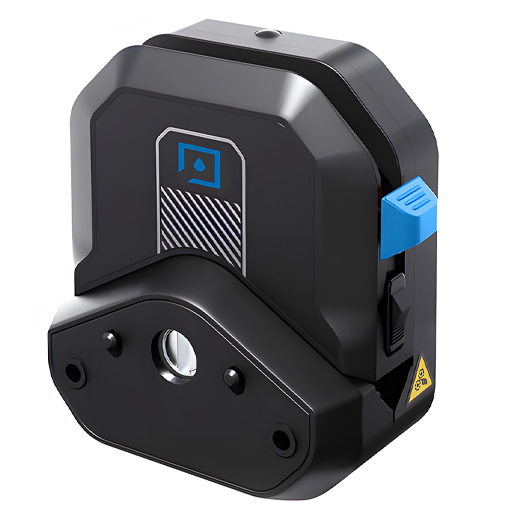

Pump Head PH 15T
The PH15T pump head incorporates a rear cover design to enhance product integrity, featuring a sleek, elegant appearance with dynamic curved lines. An independent small faceplate has been added to the rear cover for a more standardized look. It includes an adjustable pressure tube gap, easily modified by turning the screws on top, allowing compatibility with various tube specifications. This improves pressure control, increases versatility, and extends tube lifespan |
 |

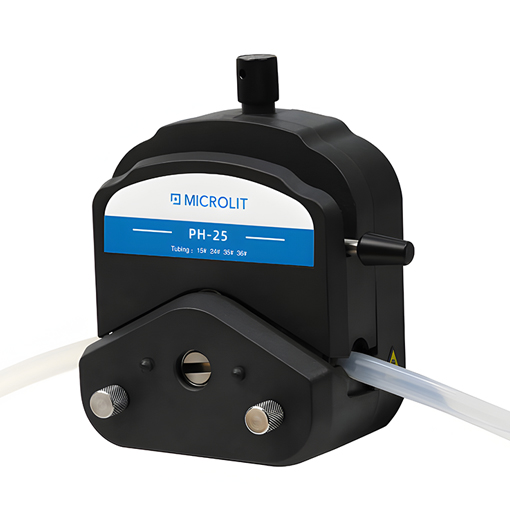

Pump Head PH-25
The PH25 pump head provides a flow range of 0.024 to 3000 ml/min and supports tube sizes 114#, 116#, 15#, 24#, 35#, and 36#. It is well-suited for handling more viscous fluids and accommodates higher suction capacities, head pressure, and outlet pressure requirements. |
