Speed Variable Series with Stainless Steel Housing
Microlit Speed Variable Peristaltic Pumps (MP100B, MP300B, MP600B) with 304 Stainless Steel Housing
- LCD Display for parameter setting and status indication.
- Programmable delay start/stop functionality.
- Supports bidirectional control, variable speed, and non-volatile memory.
- External analog input and opto-isolated control signals.
- RS485 communication with MODBUS protocol support.
- 304 Stainless Steel shell resists corrosion and is easy to clean.
- Time-based and volume-defined dispensing cycles.
- Optimized cost-to-performance ratio for standard flow applications.
Microlit Speed Variable Peristaltic Pumps offers key functions like start/stop control, speed adjustment, and forward/reverse rotation. They include an LCD display, multi-segment dispensing, and an anti-drip feature, plus RS485 communication using the MODBUS protocol for seamless integration with other devices or equipment.

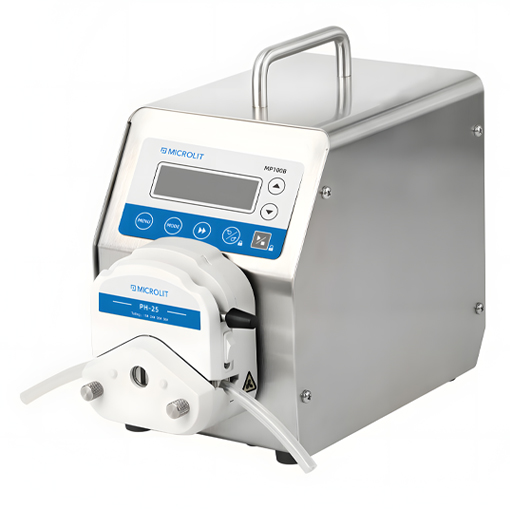

For Model: MP100B
Flow Rate: 0.00011-750 ml/min, Speed Rate: 0.1~150 RPM
Driver Weight: 3.5kg, Power Consumption : <40W
For Model: MP300B
Flow Rate: 0.005-1750 ml/min, Speed Rate: 0.1~350 RPM
Driver Weight: 4.3kg, Power Consumption: <50W
For Model: MP600B
Flow Rate: 0.005-3000 ml/min, Speed Rate: 0.1-600 RPM
Driver Weight: 4.3kg, Power Consumption: <60W

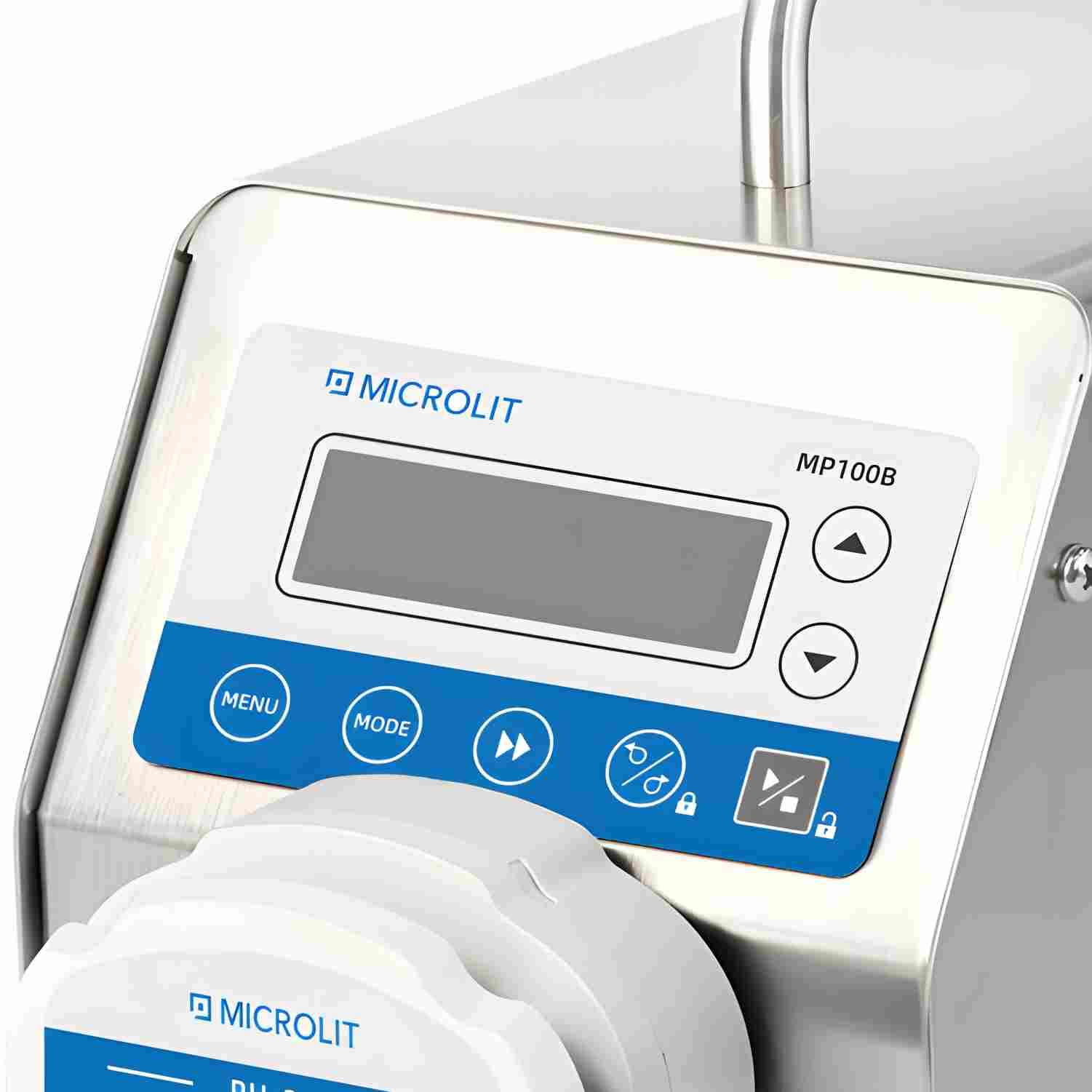

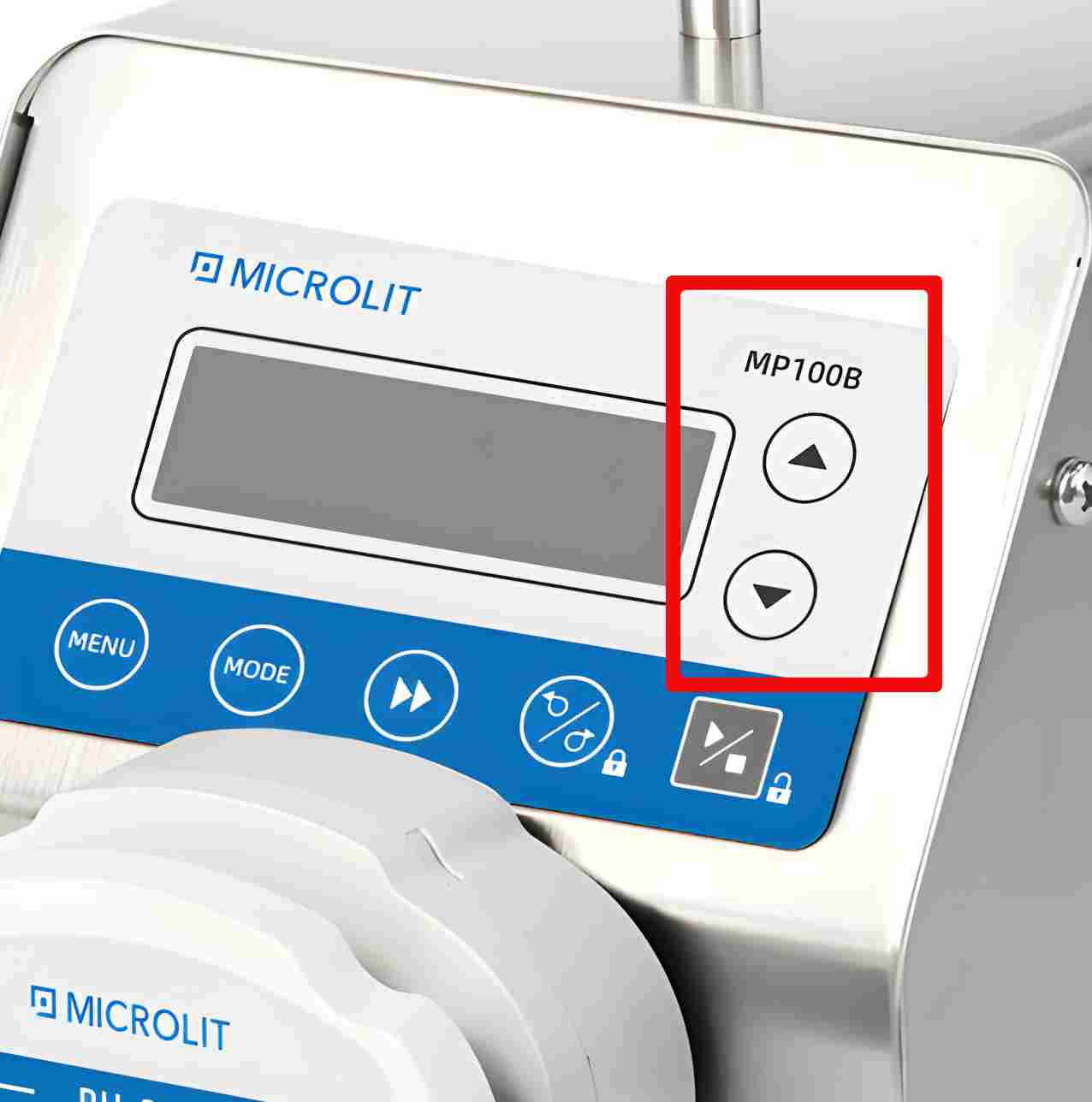

User-Friendly LCD Display
Equipped with a clear LCD display that allows for simple parameter settings and intuitive status monitoring.
Delay Start and Stop Functionality
Includes programmable delay start and delay stop features to enhance operational flexibility.

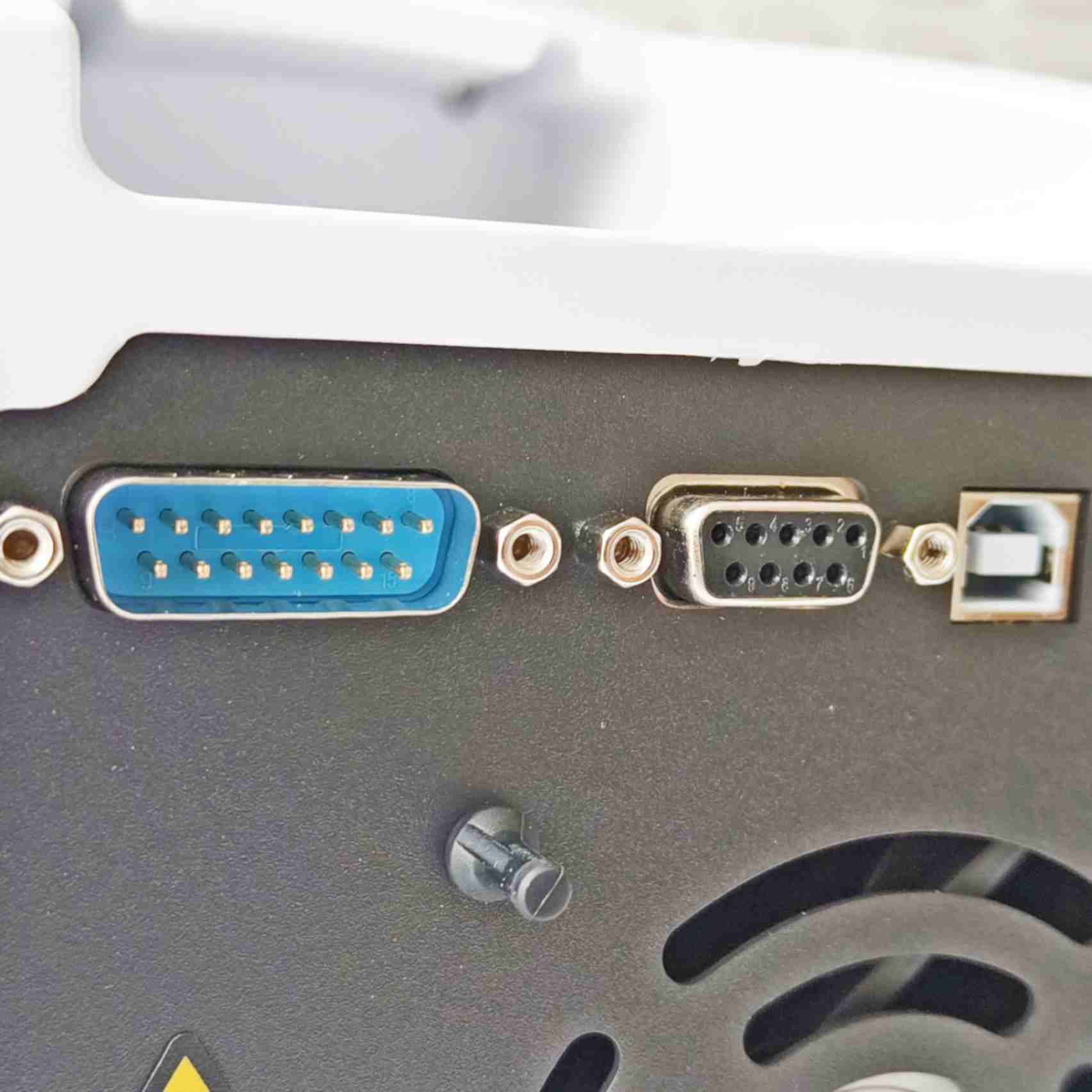

RS485 Communication with MODBUS Support
Features a built-in RS485 interface supporting MODBUS protocol, enabling seamless integration with various external systems and customizable communication parameters.

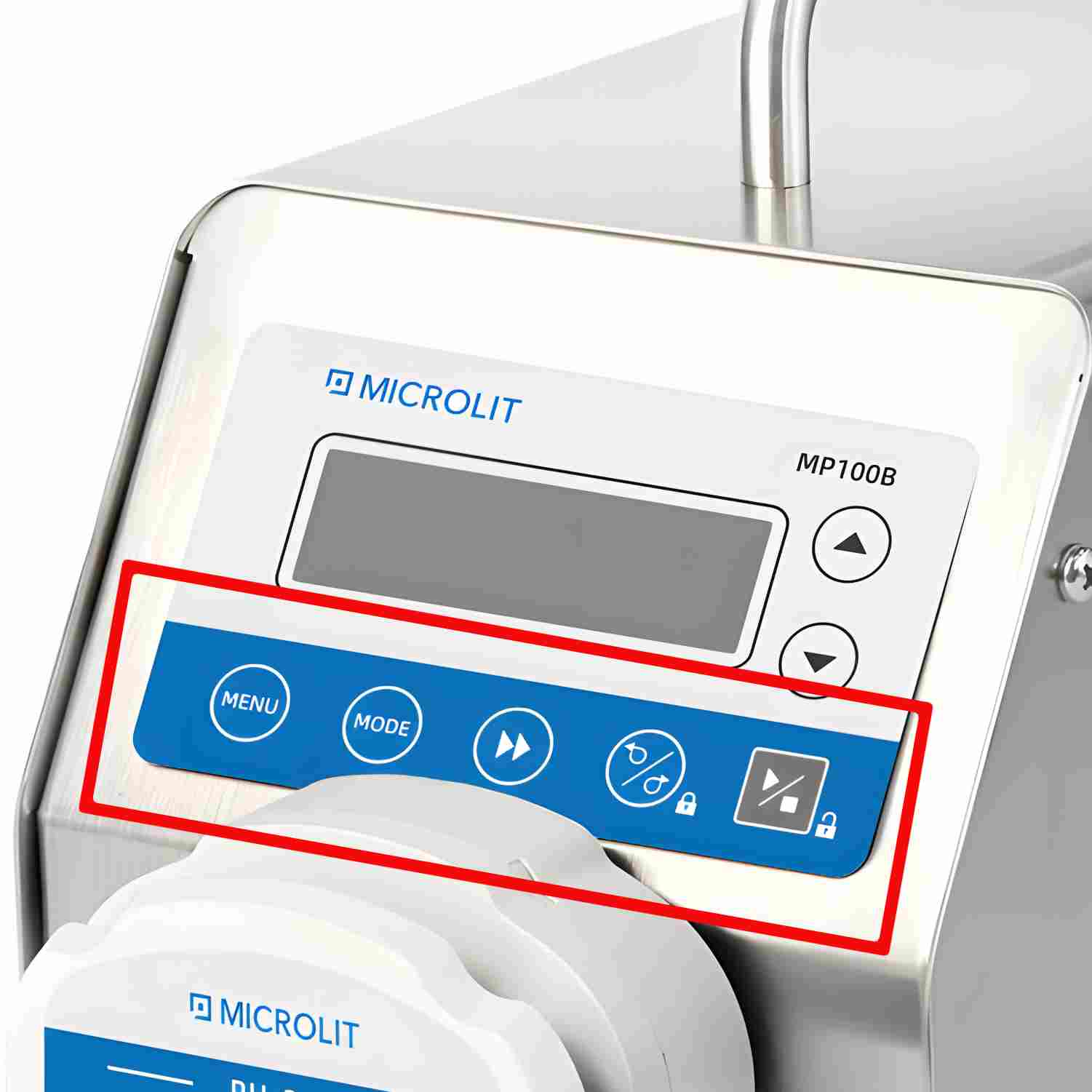

Comprehensive Control Options
Offers versatile control features including start/stop, reversible direction, full-speed operation, adjustable speed, and state memory (power-down memory) to resume previous settings after power loss.
304 Stainless Steel Housing
304 Stainless Steel shell is easy to clean and resists corrosion from various organic solvents.
Various Head Pump Support
Compatible with multiple pump head types, enabling flexible configuration to suit different flow rates and application needs. Ideal for a wide range of liquid handling tasks.
| Features | Description |
|---|---|
| Speed Resolution | 0.1RPM (speed ≤ 100 RPM ) /1RPM (speed>100RPM) |
| Duration | Running time 0.1~999 S/Min/H/D, Interval time 0.1~999 S/Min/H/D |
| Dispensing Interval Time | 0.1~999 S/Min/H/D |
| Dispensing Time | 1~999, “0” Infinite cycle |
| External Control Signal Input | (1) Start/Stop: passive contact, external control input level (5~24V) (2) Forward/Reverse: passive contact, external control input level (5~24V) (3) Speed Regulation: analog 0~5V, 0~10V, 4~20mA can be set |
| External Control Signal Output | (1) Start/Stop: Level Signal (following input voltage) (2) Forward/Reverse: Level Signal (following input voltage) |
| Working Environment | Temperature 0 ~ 40°C, relative humidity<80% |
| IP Grade | IP31 |
| Dimension (L×W×H) | 261mm x 150mm x 237mm |
Explore the Microlit Speed Variable Peristaltic Pump catalogues and manuals to find detailed technical specifications, installation guides, and operating instructions. These resources provide comprehensive information on model features, tubing compatibility, flow ranges, and maintenance tips—perfect for both beginners and experienced users.
| Accessories | Description |
 |
Hand Dispenser MP-HD
The hand dispenser, equipped with Microlit MP-HD series filling needles, is well-suited for manual and semi-automatic dispensing using a peristaltic pump. It offers a comfortable grip, compact form, and lightweight design. |
 |
Footswitch MP-FS
Compatible with Microlit’s complete product range, the footswitch controls pump start and stop functions. It features a light-touch front-step design for responsive feedback and fatigue-free operation. |
 |
Pump Head PH15-24 | PH15-44 | PH 10-28
The PH series pump head is designed for small to medium flow and multi-channel fluid transfer, available in two variants—PH10 and PH15—based on tubing size. It supports a single-channel flow range of 0.00023 to 64 ml/min and is compatible with tubing sizes 13# and 14#, featuring inner diameters from 0.13 to 3.2 mm and wall thicknesses between 0.8 and 1 mm. |
|

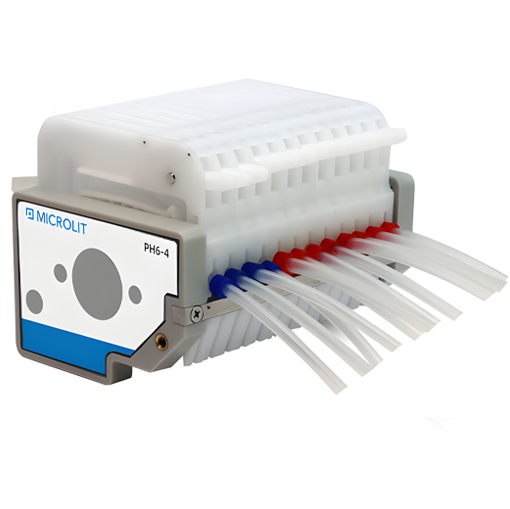

Pump Head PH 6-4
The Microlit PH series pump head is engineered for low-flow, multi-channel fluid transfer, capable of handling 1 to 48 channels within a compact and user-friendly design. Its precisely engineered structure ensures ultra-low pulsation, outperforming conventional multi-roller pump heads. |
 |
Pump Head PH 15T
The PH15T pump head incorporates a rear cover design to enhance product integrity, featuring a sleek, elegant appearance with dynamic curved lines. An independent small faceplate has been added to the rear cover for a more standardized look. It includes an adjustable pressure tube gap, easily modified by turning the screws on top, allowing compatibility with various tube specifications. This improves pressure control, increases versatility, and extends tube lifespan |
 |
Pump Head PH-25
The PH25 pump head provides a flow range of 0.024 to 3000 ml/min and supports tube sizes 114#, 116#, 15#, 24#, 35#, and 36#. It is well-suited for handling more viscous fluids and accommodates higher suction capacities, head pressure, and outlet pressure requirements. |
